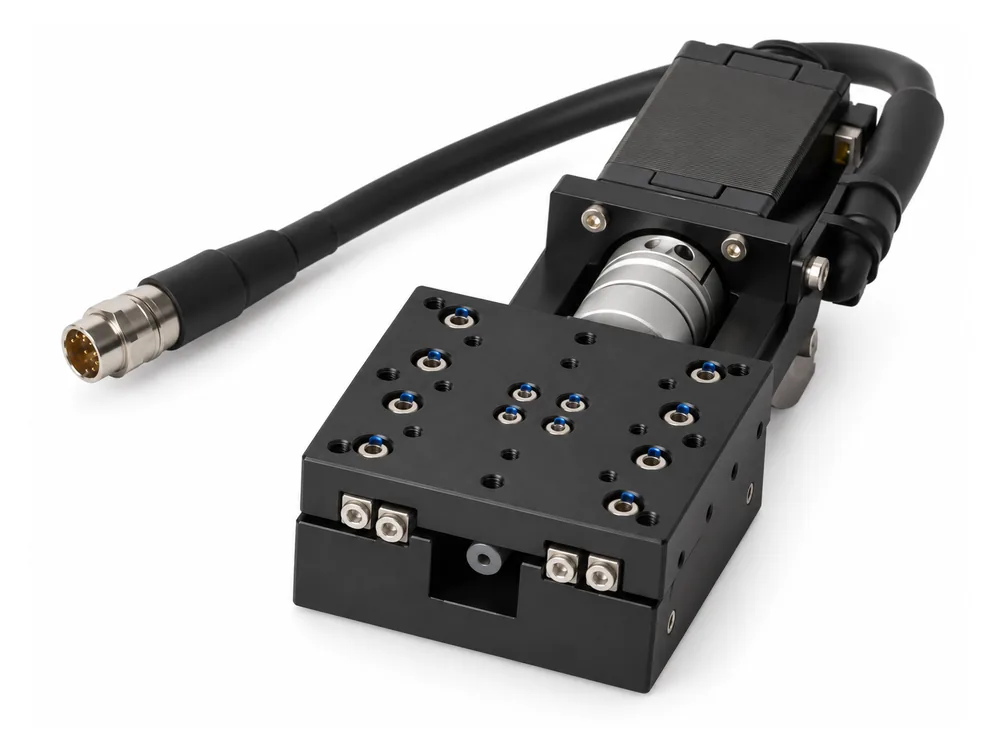

CYGXN60-0601-30-28 Linear · Crossed roller · Stepper
- Travel
- 30 mm
- Table
- 60×60 mm
- Repeatability
- ± 0.3 µm
- Load
- 5 kg
Manufacturer · own production line · since 2004
Motorized Positioning Stages
Six series, 62 standard models, from a 25 mm bench translator to a 200 kg lift platform. Pick a model on its specification — and see, for every number, whether we measured it or not.
What motion do you need?
6 series Motorized Linear Stages Ball-screw driven single-axis translation on crossed-roller or linear-ball guideways. 17 models → Goniometer Stages Arc swing about a rotation centre above the table, for tilt alignment without translating the part. 8 models → Vertical Lift Stages Z-axis lift tables and scissor lifts, from 6 mm bench travel to 200 kg platforms. 9 models → Rotary Stages Limited-arc ball-screw drive and continuous 360° worm gear, to ±0.002° repeatability. 10 models → Multi-Axis Stages XY, XZ, XYθ and XYZ assemblies built and aligned at the works as one unit. 9 models → Hollow Rotary Tables Through-hole cam indexing tables, ±5 arc-sec repeatability, 137 to 2500 N·m tilt moment. 9 models →
Representative models
one from each of four series

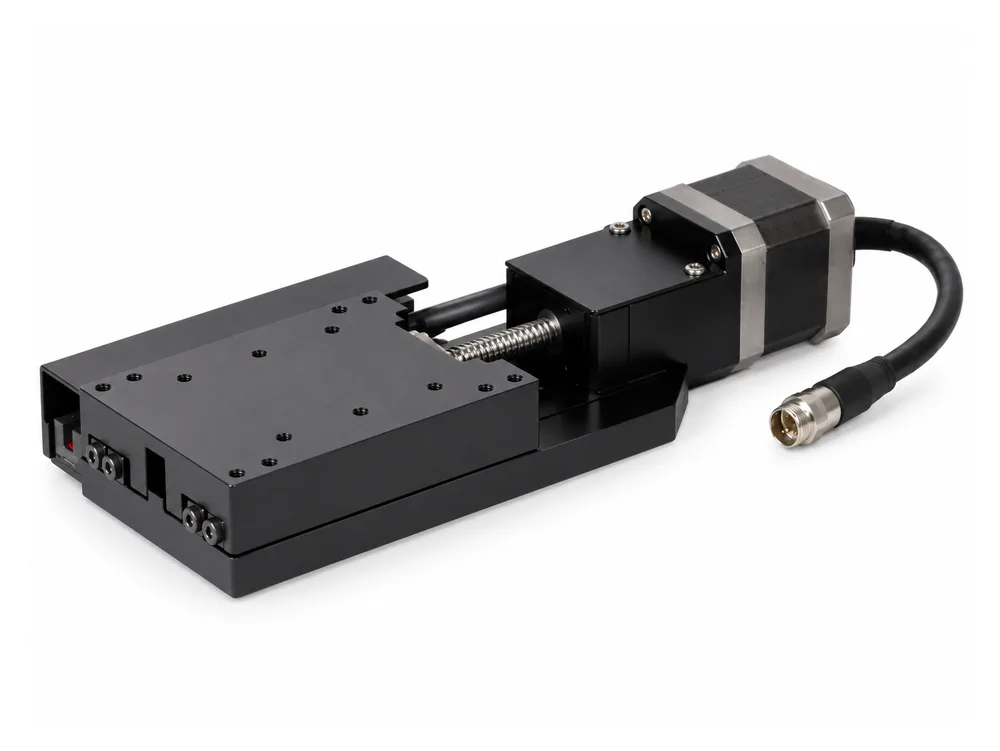

CYGX80-0802-50-42 Linear · Crossed roller · Stepper
- Travel
- 50 mm
- Table
- 80×100 mm
- Repeatability
- ± 0.3 µm
- Load
- 20 kg

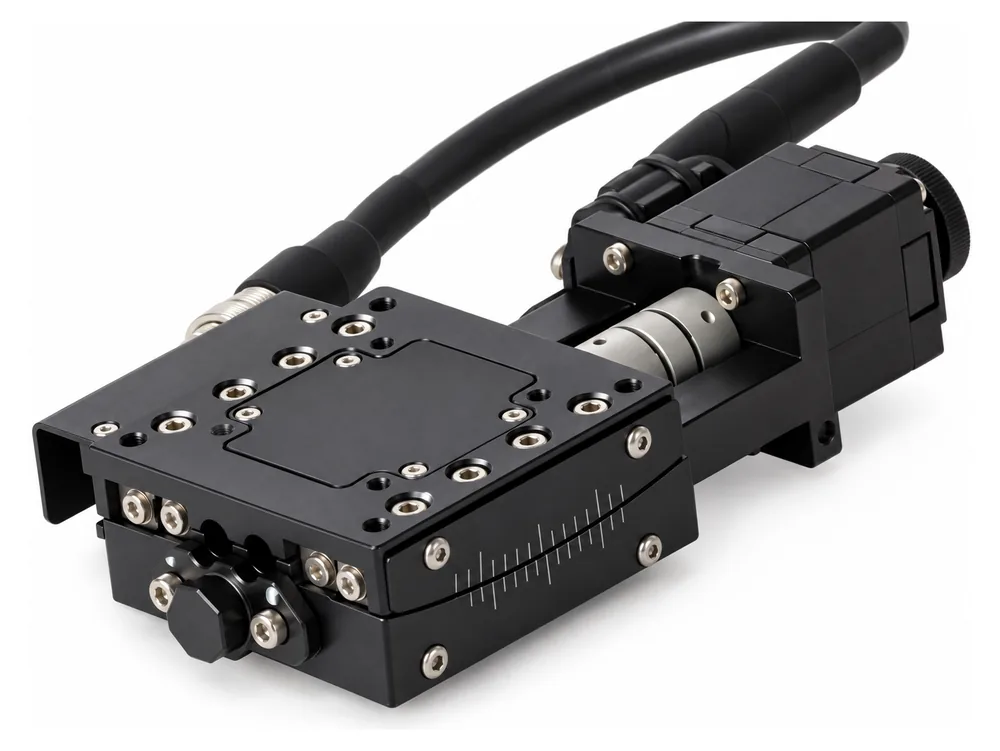

CYDAV60-50-28 Goniometer · Crossed roller · Stepper
- Arc
- ± 8.5°
- Centre height
- 50±0.2 mm
- Repeatability
- ± 0.002°
- Load
- 5 kg
outline — photo pending
CYDRA100-360-42 Rotary · Worm gear · Stepper
- Range
- 360° cont.
- Repeatability
- ± 0.005°
- Backlash
- ± 0.01°
- Centre load
- 15 kg
How we publish a specification
and what we will not doEvery parameter on this site carries its own basis. A figure marked Catalogue is the published shipping specification. A figure marked Derived has been normalised — most often a travel that the printed catalogue quotes as a half-range and we publish as a total. A figure marked Not confirmed is one we have not measured on that model.
A parameter we have not measured stays empty
It is never filled with a zero, and a horizontal payload figure is never reused as a vertical one. If you need a number that is not here, the answer is an engineering confirmation, not a guess — ask and we will measure it or tell you we cannot.
Three numbers that are not the same number
Resolution is the smallest commanded increment. Repeatability is how closely the stage returns to a point it has already visited. Positioning accuracy is how close it gets to the point you asked for. Our crossed-roller linear stages repeat to ±0.3 µm and position to 5 µm; quoting the first as if it were the third is the most common specification error in this category, and we would rather lose the comparison than win it that way.
